Tungsten Alloy Swaging Rod Grades under Transient High Heat Loads
Transient high heat loads simulations by using the electron beam facility have been performed on two tungsten heavy alloy swaging rod grades at several power loads with a pulse duration of 5 ms. The cracking patterns of the two tungsten heavy alloy swaging rod grades are quite similar. All cracks occurred along the grain boundary and located across the loaded area. The cracks can be distinguished with two levels, major cracks with larger crack width but lower crack density and microcracks with smaller crack width but higher crack density. The higher the deformation level of tungsten alloy swaging rod for armor piercing and heat loading power density, the smaller the major crack density will be, but there is no obvious difference in the microcracks pattern. No melting occurred for both tungsten alloy swaging rod grades after transient heat loading at power density of 0.88 GW m?2.

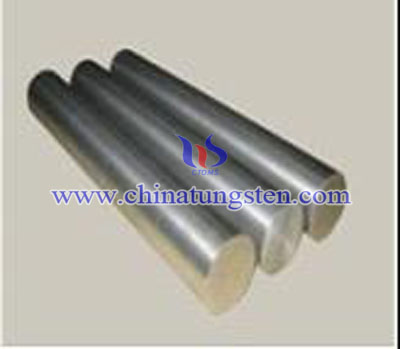

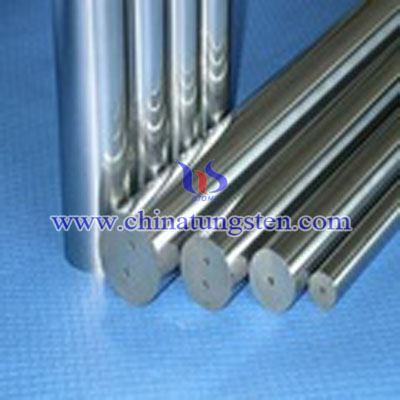

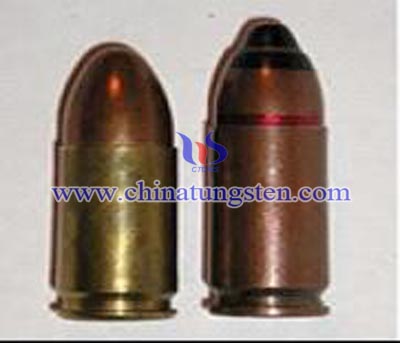

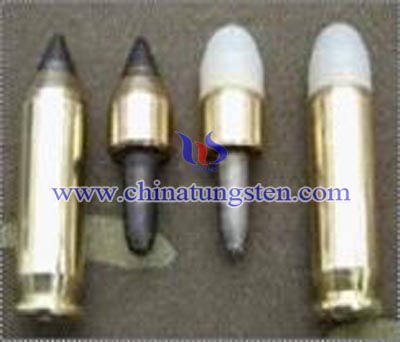

Some Pictures of Tungsten Alloy Swaging Rod for Armor Piercing
Types of Tungsten Alloy Swaging Rod for Armor Piercing Projectile Introduction
Tungsten alloy swaging rod for armor piercing projectile which is made of tungsten alloy comprising a high density penetrator core with a tapered front end and a multi-part outer case in partial contact with the core. This kind of armor piercing projectile will not penetrate because the multi-part jointed case is not as strong as a single-piece, monolithic case. Also, since the hard core is loose and not bonded to the case, then the core can not provide additional structural support. In addition, tungsten alloy swaging rod for armor piercing projectile does not have the ability to either explosively damage the target after penetration, or take data from an instrumentation package during or after penetration.
"Hollow-point" design results in radial expansion of the jacket into "petals" as the tungsten alloy swaging rod travels through the target. Such "flowering" of the case upon impact severely limits the depth of penetration into hardened targets.
Tungsten alloy swaging rod for armor piercing projectile comprising a heavy metal core and a segmented sabot with both right-handed and left-handed threads that separates from the core after exiting the gun's nozzle. It will not penetrate deeply because the nose end is made of a brittle heavy metal alloy, rather than high-strength steel. Also, it requires the use of a discarding sabot carrier.
Tungsten alloy swaging rod for armor piercing projectile with a speculating core comprising an elongated arrow style it is of a core surrounded by a body, where the hardness of the core is greater than twice the hardness of the body. The outer case is made out of tungsten alloy swaging rod. The brittle behavior of these alloys will prevent this from achieving deep penetration in hardened targets, when compared to cases made of high-strength and high-toughness steel alloys.Tungsten alloy swaging rod for armor pierceing is our leader products. We can provide different sizes of it according as your requirements.

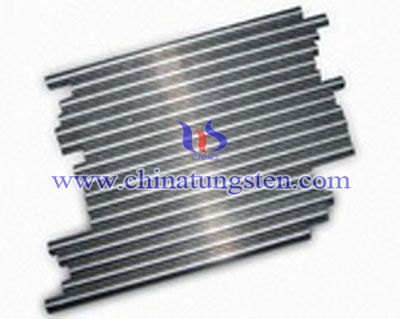

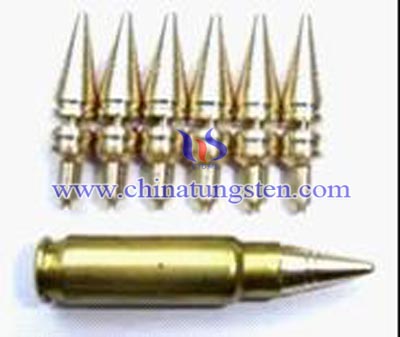

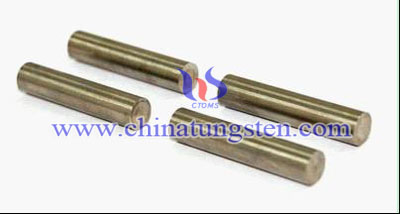

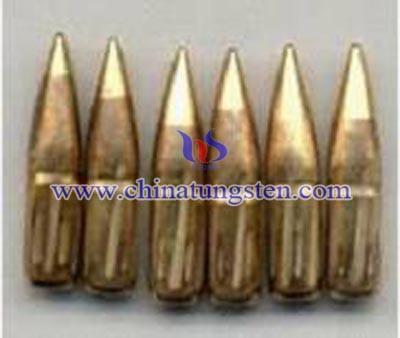

Some Pictures for Tungsten Alloy Swaging Rod
If you want to know more details about tungsten alloy swaging rod, please feel free to contact us by email: sales@chinatungsten.com or by phone: 86 592 5129696.
